Zinc Adjustable Position Handles

Source high-performance zinc adjustable position handles built to exact dimensional tolerances for industrial tooling, automation frames, and modular workholding equipment.

Manufactured with wear-resistant zinc alloy levers and hardened black oxide steel threads, AMTOIND offers an extensive inventory spanning standard inch threads from 1/4-20 up to 5/8-11 with flexible bulk wholesale pricing and rapid nationwide dispatch directly from our Texas facility

Product Variations & Sizes

Adjustable Position Handles

adjustable handles
adjustable handles
adjustable handles
adjustable handles.1
adjustable handles.1

Adjustable Handles

  • Material: Zinc Alloy Handle Body; black oxide treated steel sliding sleeve and screw.

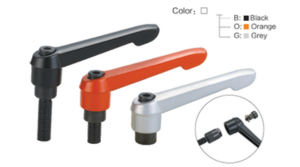

  • Color codes shown in source: B =Black, O =Orange, G = Grey.
  • Dimensions are in inches unless otherwise noted.
  • Black oxide treatment steel sliding sleeve and screw

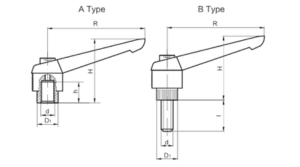

Part Number Type Material Handle Body Description R (in) d l (in) h (in) H (in)2 D1 (in)
D701230 A Zinc Alloy Zinc Adjustable Handle-Threaded Hole 1.57 × 1/4-20 1.57 1/4-20 0.35 1.18 0.36
D701232 B Zinc Alloy Zinc Adjustable Handle-Threaded Stud Type 1.57 × 1/4-20 × 0.50 1.57 1/4-20 0.50 1.18 0.36
D701233 B Zinc Alloy Zinc Adjustable Handle-Threaded Stud Type 1.57 × 1/4-20 × 0.75 1.57 1/4-20 0.75 1.18 0.36
D701234 B Zinc Alloy Zinc Adjustable Handle-Threaded Stud Type 1.57 × 1/4-20 × 1.00 1.57 1/4-20 1.00 1.18 0.36
D701235 B Zinc Alloy Zinc Adjustable Handle-Threaded Stud Type 1.57 × 1/4-20 × 1.25 1.57 1/4-20 1.25 1.18 0.36
D701440 A Zinc Alloy Zinc Adjustable Handle-Threaded Hole Type 2.56 × 5/16-18 2.56 5/16-18 0.47 1.73 0.54
D701443 B Zinc Alloy Zinc Adjustable Handle-Threaded Stud Type 2.56 × 5/16-18 × 0.75 2.56 5/16-18 0.75 1.73 0.54
D701444 B Zinc Alloy Zinc Adjustable Handle-Threaded Stud Type 2.56 × 5/16-18 × 1.00 2.56 5/16-18 1.00 1.73 0.54
D701445 B Zinc Alloy Zinc Adjustable Handle-Threaded Stud Type 2.56 × 5/16-18 × 1.25 2.56 5/16-18 1.25 1.73 0.54
D701446 B Zinc Alloy Zinc Adjustable Handle-Threaded Stud Type 2.56 × 5/16-18 × 1.50 2.56 5/16-18 1.50 1.73 0.54
D701447 B Zinc Alloy Zinc Adjustable Handle-Threaded Stud Type 2.56 × 5/16-18 × 2.00 2.56 5/16-18 2.00 1.73 0.54
D701550 A Zinc Alloy Zinc Adjustable Handle-Threaded Hole Type 3.15 × 3/8-16 3.15 3/8-16 0.50 2.00 0.63
D701553 B Zinc Alloy Zinc Adjustable Handle-Threaded Stud Type 3.15 × 3/8-16 × 0.75 3.15 3/8-16 0.75 2.00 0.63
D701554 B Zinc Alloy Zinc Adjustable Handle-Threaded Stud Type 3.15 × 3/8-16 × 1.00 3.15 3/8-16 1.00 2.00 0.63
D701555 B Zinc Alloy Zinc Adjustable Handle-Threaded Stud Type 3.15 × 3/8-16 × 1.25 3.15 3/8-16 1.25 2.00 0.63
D701556 B Zinc Alloy Zinc Adjustable Handle-Threaded Stud Type 3.15 × 3/8-16 × 1.50 3.15 3/8-16 1.50 2.00 0.63
D701557 B Zinc Alloy Zinc Adjustable Handle-Threaded Stud Type 3.15 × 3/8-16 × 2.00 3.15 3/8-16 2.00 2.00 0.63
D701670 A Zinc Alloy Zinc Adjustable Handle-Threaded Hole Type 3.74 × 1/2-12 3.74 1/2-12 0.67 2.44 0.77
D701674 B Zinc Alloy Zinc Adjustable Handle-Threaded Stud Type 3.74 × 1/2-12 × 1.00 3.74 1/2-12 1.00 2.44 0.77
D701675 B Zinc Alloy Zinc Adjustable Handle-Threaded Stud Type 3.74 × 1/2-12 × 1.25 3.74 1/2-12 1.25 2.44 0.77
D701676 B Zinc Alloy Zinc Adjustable Handle-Threaded Stud Type 3.74 × 1/2-12 × 1.50 3.74 1/2-12 1.50 2.44 0.77
D701677 B Zinc Alloy Zinc Adjustable Handle-Threaded Stud Type 3.74 × 1/2-12 × 2.00 3.74 1/2-12 2.00 2.44 0.77
D701678 B Zinc Alloy Zinc Adjustable Handle-Threaded Stud Type 3.74 × 1/2-12 × 2.50 3.74 1/2-12 2.50 2.44 0.77
D701880 A Zinc Alloy Zinc Adjustable Handle-Threaded Hole Type 4.33 × 5/8-11 4.33 5/8-11 0.70 2.76 0.87
D701886 B Zinc Alloy Zinc Adjustable Handle-Threaded Stud 4.33 Type × 5/8-11 × 1.50 4.33 5/8-11 1.50 2.76 0.87
D701887 B Zinc Alloy Zinc Adjustable Handle-Threaded Stud Type 4.33 × 5/8-11 × 2.00 4.33 5/8-11 2.00 2.76 0.87
D701888 B Zinc Alloy Zinc Adjustable Handle-Threaded Stud Type 4.33 × 5/8-11 × 2.50 4.33 5/8-11 2.50 2.76 0.87
