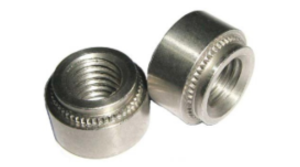

Simplify your sheet metal fastening operations with precision-engineered self clinching nuts. Submit your material requirements—including hardened steel or stainless steel (SUS) options—and our technical sales team will promptly deliver a competitive estimate.

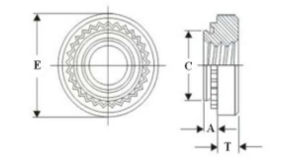

Product Variations & Sizes
| Thread Size | Type | Thread Code | Shank Code | A (Shank) Max. |
Min. Sheet Thickness | Hole Size in Sheet +.003 |
C Max. |
E ±.01 |
T ±.01 |
Min. Dist Hole C/L To Edge | |
| Steel | SUS | ||||||||||
| .086-56 (#2-56) |
S | CLS | 256 | 0 | 0.030 | 0.030 | 0.166 | 0.165 | 0.25 | 0.07 | 0.19 |
| 1 | 0.038 | 0.040 | |||||||||
| 2 | 0.054 | 0.056 | |||||||||
| .099-48 (#3-48) |
S | CLS | 348 | 0 | 0.030 | 0.030 | 0.166 | 0.165 | 0.25 | 0.07 | 0.19 |
| 1 | 0.038 | 0.040 | |||||||||
| 2 | 0.054 | 0.056 | |||||||||
| .112-40 (#4-40) |
S | CLS | 440 | 0 | 0.030 | 0.030 | 0.166 | 0.165 | 0.25 | 0.07 | 0.19 |
| 1 | 0.038 | 0.040 | |||||||||
| 2 | 0.054 | 0.056 | |||||||||
| 3 | 0.087 | 0.091 | |||||||||
| .138-32 (#6-32) |
S | CLS | 632 | 0 | 0.030 | 0.030 | 0.1875 | 0.187 | 0.28 | 0.07 | 0.22 |
| 1 | 0.038 | 0.040 | |||||||||
| 2 | 0.054 | 0.056 | |||||||||
| 3 | 0.087 | 0.091 | |||||||||
| .164-32 (#8-32) |
S | CLS | 832 | 0 | 0.030 | 0.030 | 0.213 | 0.212 | 0.31 | 0.09 | 0.27 |
| 1 | 0.038 | 0.040 | |||||||||
| 2 | 0.054 | 0.056 | |||||||||
| 3 | 0.087 | 0.091 | |||||||||
| .190-24 (#10-24) |
S | CLS | 024 | 0 | 0.030 | 0.030 | 0.250 | 0.249 | 0.34 | 0.09 | 0.28 |
| 1 | 0.038 | 0.040 | |||||||||
| 2 | 0.054 | 0.056 | |||||||||
| 3 | 0.087 | 0.091 | |||||||||
| .190-32 (#10-32) |
S | CLS | 032 | 0 | 0.030 | 0.030 | 0.250 | 0.249 | 0.34 | 0.09 | 0.28 |
| 1 | 0.038 | 0.040 | |||||||||
| 2 | 0.054 | 0.056 | |||||||||
| 3 | 0.087 | 0.091 | |||||||||
| .216-24 (#12-24) |
S | CLS | 1224 | 1 | 0.038 | 0.040 | 0.277 | 0.276 | 0.38 | 0.13 | 0.31 |
| 2 | 0.054 | 0.056 | |||||||||
| 3 | 0.087 | 0.091 | |||||||||
| .250-20 (1/4-20) | S | CLS | 0420 | 0 | 0.045 | 0.047 | 0.344 | 0.343 | 0.44 | 0.17 | 0.34 |
| 1 | 0.054 | 0.056 | |||||||||
| 2 | 0.087 | 0.091 | |||||||||
| 3 | 0.120 | 0.125 | |||||||||
| .250-28 (1/4-28) | S | CLS | 0428 | 1 | 0.054 | 0.056 | 0.344 | 0.343 | 0.44 | 0.17 | 0.34 |
| 2 | 0.087 | 0.091 | |||||||||
| 3 | 0.120 | 0.125 | |||||||||
| .313-18 (5/16-18) | S | CLS | 0518 | 1 | 0.054 | 0.056 | 0.413 | 0.412 | 0.50 | 0.23 | 0.38 |
| 2 | 0.087 | 0.091 | |||||||||
| 3 | 0.120 | 0.125 | |||||||||
| .313-24 (5/16-24) | S | CLS | 0524 | 1 | 0.054 | 0.056 | 0.413 | 0.412 | 0.50 | 0.23 | 0.38 |
| 2 | 0.087 | 0.091 | |||||||||
| 3 | 0.120 | 0.125 | |||||||||
| .375-16 (3/8-16) | S | CLS | 0616 | 1 | 0.087 | 0.091 | 0.500 | 0.499 | 0.56 | 0.27 | 0.44 |
| 2 | 0.120 | 0.125 | |||||||||
| 3 | 0.235 | 0.250 | |||||||||
| .375-24 (3/8-24) | S | CLS | 0624 | 1 | 0.087 | 0.091 | 0.500 | 0.499 | 0.56 | 0.27 | 0.44 |
| 2 | 0.120 | 0.125 | |||||||||
| 3 | 0.235 | 0.250 | |||||||||
| .500-13 (1/2-13) | S | CLS | 0813 | 1 | 0.120 | 0.125 | 0.656 | 0.655 | 0.81 | 0.36 | 0.63 |
| 2 | 0.235 | 0.250 | |||||||||
| .500-20 (1/2-20) | S | CLS | 0820 | 1 | 0.120 | 0.125 | 0.656 | 0.655 | 0.81 | 0.36 | 0.63 |
| 2 | 0.235 | 0.250 | |||||||||
| Thread Size ×Pitch |
Type | Thread Code | Shank Code | A (Shank) Max. |
Min. Sheet Thickness | Hole Size in Sheet +0.08 |
C Max. |
E ±0.25 |
T ±0.25 |
Min. Dist. Hole C/L To Edge | |
| Steel | SUS | ||||||||||
| M2×0.4 | S | CLS | M2 | 0 | 0.77 | 0.8-1 | 4.25 | 4.22 | 6.30 | 1.50 | 4.80 |
| 1 | 0.97 | 1.00 | |||||||||
| 2 | 1.38 | 1.40 | |||||||||
| M2.5×0.45 | S | CLS | M2.5 | 0 | 0.77 | 0.8-1 | 4.25 | 4.22 | 6.30 | 1.50 | 4.80 |
| 1 | 0.97 | 1.00 | |||||||||
| 2 | 1.38 | 1.40 | |||||||||
| M3×0.5 | S | CLS | M3 | 0 | 0.77 | 0.8-1 | 4.25 | 4.22 | 6.30 | 1.50 | 4.80 |
| 1 | 0.97 | 1.00 | |||||||||
| 2 | 1.38 | 1.40 | |||||||||
| M3.5×0.6 | S | CLS | M3.5 | 0 | 0.77 | 0.8-1 | 4.75 | 4.73 | 7.10 | 1.50 | 5.60 |
| 1 | 0.97 | 1.00 | |||||||||
| 2 | 1.38 | 1.40 | |||||||||
| M4×0.7 | S | CLS | M4 | 0 | 0.77 | 0.8-1 | 5.40 | 5.38 | 7.90 | 2.00 | 6.90 |
| 1 | 0.97 | 1.00 | |||||||||
| 2 | 1.38 | 1.40 | |||||||||
| M5×0.8 | S | CLS | M5 | 0 | 0.77 | 0.8-1 | 6.40 | 6.38 | 8.70 | 2.00 | 7.10 |
| 1 | 0.97 | 1.00 | |||||||||
| 2 | 1.38 | 1.40 | |||||||||
| M6×1.0 | S | CLS | M6 | 0 | 1.15 | 1.20 | 8.75 | 8.72 | 11.05 | 4.08 | 8.60 |
| 1 | 1.38 | 1.40 | |||||||||
| 2 | 2.21 | 2.30 | |||||||||
| M8×1.25 | S | CLS | M8 | 1 | 1.38 | 1.40 | 10.50 | 10.47 | 12.65 | 5.47 | 9.70 |
| 2 | 2.21 | 2.30 | |||||||||
| M10×1.5 | S | CLS | M10 | 1 | 2.21 | 2.31 | 14.00 | 13.97 | 17.35 | 7.48 | 13.50 |
| 2 | 3.05 | 3.18 | |||||||||
