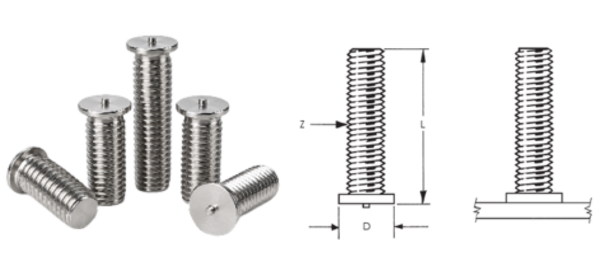

The Capacitor Discharge (CD) Stud Welding process is designed for welding CD type studs to sheet metal with little to no reverse side marking.
The ARC- Short Cycle process is also used to weld CD type studs to sheet metal and plate.
| Stud Size | Length | Stud Diameter |
Flanged Diameter |
Stud Material | Maximum Fastening Torque |
Tensile Strenght |
Part Number |
| 4-40 | 1/4 | 0.112 | 0.187 | SS 304 | 7 | 60,000 psi | D290001 |
| 3/8 | 0.112 | 0.187 | SS 304 | 7 | 60,000 psi | D290002 | |
| 1/2 | 0.112 | 0.187 | SS 304 | 7 | 60,000 psi | D290003 | |
| 5/8 | 0.112 | 0.187 | SS 304 | 7 | 60,000 psi | D290004 | |
| 3/4 | 0.112 | 0.187 | SS 304 | 7 | 60,000 psi | D290005 | |
| 1 | 0.112 | 0.187 | SS 304 | 7 | 60,000 psi | D290006 | |
| 6-32 | 1/4 | 0.138 | 0.218 | SS 304 | 10 | 60,000 psi | D290007 |
| 3/8 | 0.138 | 0.218 | SS 304 | 10 | 60,000 psi | D290008 | |
| 1/2 | 0.138 | 0.218 | SS 304 | 10 | 60,000 psi | D290009 | |
| 5/8 | 0.138 | 0.218 | SS 304 | 10 | 60,000 psi | D290010 | |
| 3/4 | 0.138 | 0.218 | SS 304 | 10 | 60,000 psi | D290011 | |
| 1 | 0.138 | 0.218 | SS 304 | 10 | 60,000 psi | D290012 | |
| 8-32 | 1/4 | 0.164 | 0.250 | SS 304 | 20 | 60,000 psi | D290013 |
| 3/8 | 0.164 | 0.250 | SS 304 | 20 | 60,000 psi | D290014 | |
| 1/2 | 0.164 | 0.250 | SS 304 | 20 | 60,000 psi | D290015 | |
| 5/8 | 0.164 | 0.250 | SS 304 | 20 | 60,000 psi | D290016 | |
| 3/4 | 0.164 | 0.250 | SS 304 | 20 | 60,000 psi | D290017 | |
| 1 | 0.164 | 0.250 | SS 304 | 20 | 60,000 psi | D290018 | |
| 10-24 | 1/4 | 0.190 | 0.250 | SS 304 | 23 | 60,000 psi | D290019 |
| 3/8 | 0.190 | 0.250 | SS 304 | 23 | 60,000 psi | D290020 | |
| 1/2 | 0.190 | 0.250 | SS 304 | 23 | 60,000 psi | D290021 | |
| 5/8 | 0.190 | 0.250 | SS 304 | 23 | 60,000 psi | D290022 | |
| 3/4 | 0.190 | 0.250 | SS 304 | 23 | 60,000 psi | D290023 | |
| 1″ | 0.190 | 0.250 | SS 304 | 23 | 60,000 psi | D290024 | |
| 1-1/4 | 0.190 | 0.250 | SS 304 | 23 | 60,000 psi | D290025 | |
| 10-32 | 1/4 | 0.190 | 0.250 | SS 304 | 23 | 60,000 psi | D290026 |
| 3/8 | 0.190 | 0.250 | SS 304 | 23 | 60,000 psi | D290027 | |
| 1/2 | 0.190 | 0.250 | SS 304 | 23 | 60,000 psi | D290028 | |
| 5/8 | 0.190 | 0.250 | SS 304 | 23 | 60,000 psi | D290029 | |
| 3/4 | 0.190 | 0.250 | SS 304 | 23 | 60,000 psi | D290030 | |
| 1″ | 0.190 | 0.250 | SS 304 | 23 | 60,000 psi | D290031 | |
| 1-1/4 | 0.190 | 0.250 | SS 304 | 23 | 60,000 psi | D290032 | |
| 1/4-20 | 1/4 | 0.250 | 0.312 | SS 304 | 75 | 60,000 psi | D290033 |
| 3/8 | 0.250 | 0.312 | SS 304 | 75 | 60,000 psi | D290034 | |
| 1/2 | 0.250 | 0.312 | SS 304 | 75 | 60,000 psi | D290035 | |
| 5/8 | 0.250 | 0.312 | SS 304 | 75 | 60,000 psi | D290036 | |
| 3/4 | 0.250 | 0.312 | SS 304 | 75 | 60,000 psi | D290037 | |
| 7/8 | 0.250 | 0.312 | SS 304 | 75 | 60,000 psi | D290038 | |
| 1″ | 0.250 | 0.312 | SS 304 | 75 | 60,000 psi | D290039 | |
| 1-1/4 | 0.250 | 0.312 | SS 304 | 75 | 60,000 psi | D290040 | |
| 1-1/2 | 0.250 | 0.312 | SS 304 | 75 | 60,000 psi | D290041 | |
| 1-3/4 | 0.250 | 0.312 | SS 304 | 75 | 60,000 psi | D290042 | |
| 2″ | 0.250 | 0.312 | SS 304 | 75 | 60,000 psi | D290043 | |
| 5/16-18 | 1/2 | 0.312 | 0.375 | SS 304 | 126 | 60,000 psi | D290044 |
| 3/4 | 0.312 | 0.375 | SS 304 | 126 | 60,000 psi | D290045 | |
| 1″ | 0.312 | 0.375 | SS 304 | 126 | 60,000 psi | D290046 | |
| 1-1/4 | 0.312 | 0.375 | SS 304 | 126 | 60,000 psi | D290047 | |
| 1-1/2 | 0.312 | 0.375 | SS 304 | 126 | 60,000 psi | D290048 | |
| 1-3/4 | 0.312 | 0.375 | SS 304 | 126 | 60,000 psi | D290049 | |
| 2″ | 0.312 | 0.375 | SS 304 | 126 | 60,000 psi | D290050 | |
| 3/8-16 | 1/2 | 0.375 | 0.437 | SS 304 | 185 | 60,000 psi | D290051 |
| 3/4 | 0.375 | 0.437 | SS 304 | 185 | 60,000 psi | D290052 | |
| 1″ | 0.375 | 0.437 | SS 304 | 185 | 60,000 psi | D290053 | |
| 1-1/4 | 0.375 | 0.437 | SS 304 | 185 | 60,000 psi | D290054 | |
| 1-1/2 | 0.375 | 0.437 | SS 304 | 185 | 60,000 psi | D290055 | |
| 1-3/4 | 0.375 | 0.437 | SS 304 | 185 | 60,000 psi | D290056 | |
| 2″ | 0.375 | 0.437 | SS 304 | 185 | 60,000 psi | D290057 |
Need Custom Sizes or Bulk Volume Pricing?
